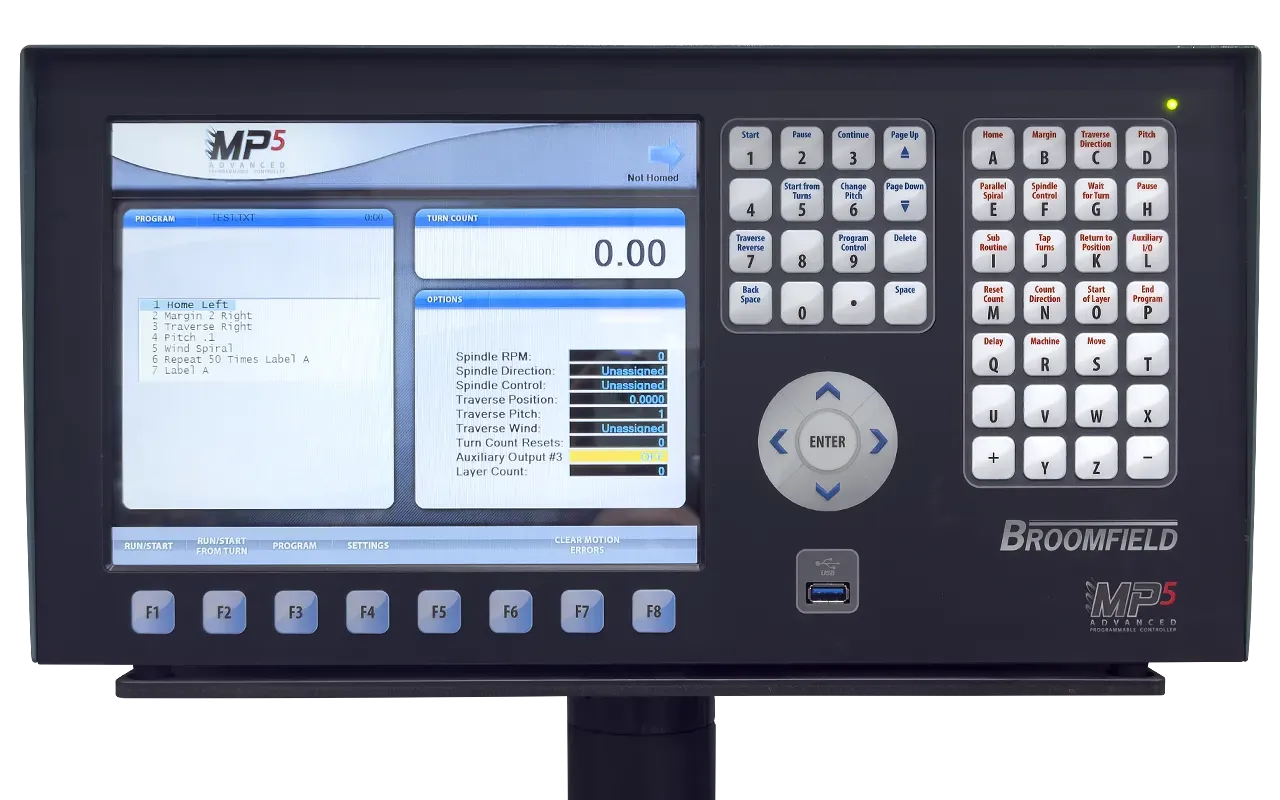

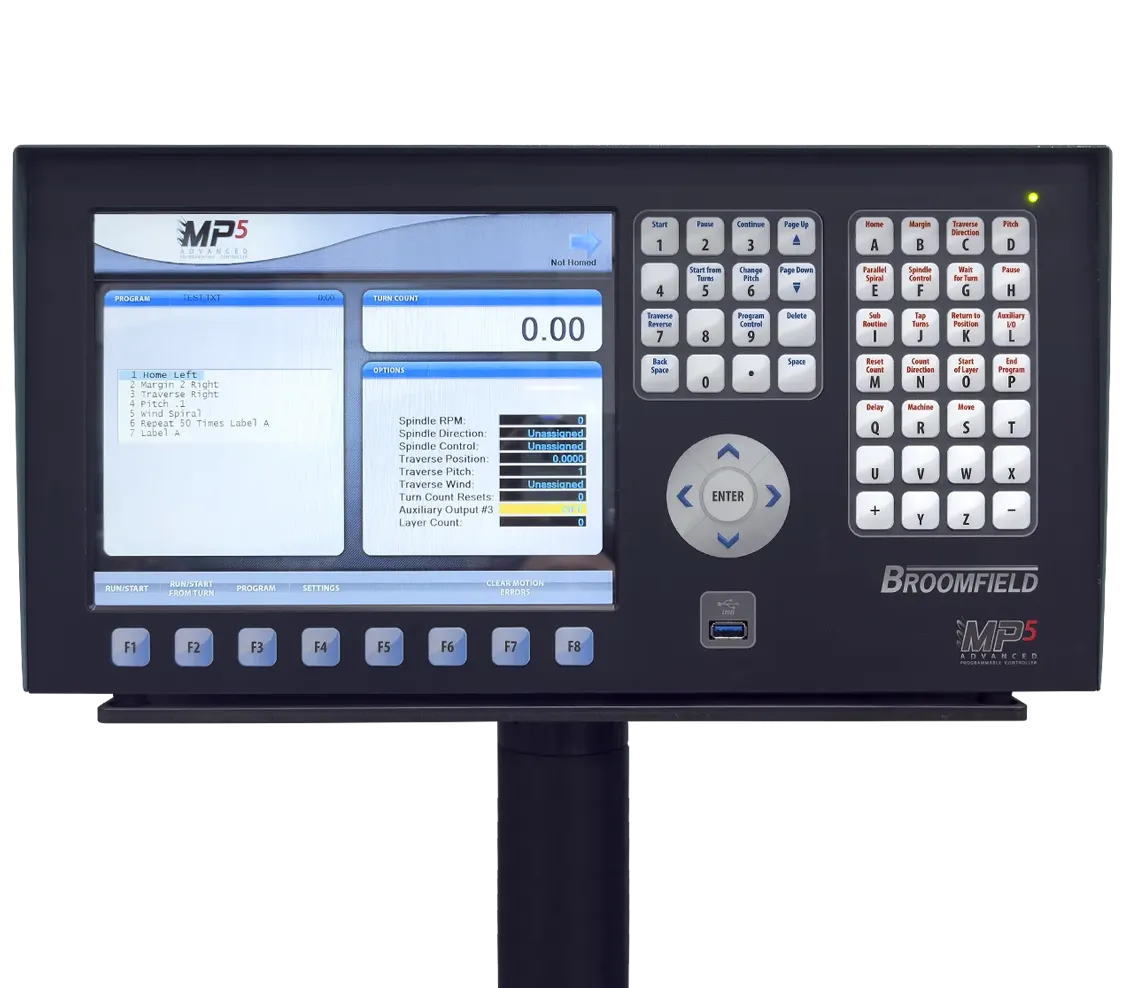

MP5 Coil Winding Controller

Advanced control, intuitive operation, and unmatched precision.

The Broomfield MP5 winding controller is our latest evolution in rugged, user-friendly automation for precision coil winding. Built on a reliable embedded Linux platform, the MP5 features a high-resolution color display and an intuitive interface that streamlines programming and operation while maintaining the familiar workflow for longtime users. Below are some key features.

Legacy support ensures that existing MP model programs are fully compatible with the MP5. Operators will feel right at home with the proven command structure they know, while gaining access to new features such as embedded media support. Programs can now include photos, videos, and text instructions to provide real-time guidance and operator training.

If an error occurs mid-wind, the MP5 lets you resume from any programmed turn count. This "Start-From-Turns" function minimizes material waste, maximizes productivity, and ensures uninterrupted workflows.

With USB ports and network capability, the MP5 simplifies program backup and remote file management. Store, retrieve, and edit coil winding programs using USB media or network connectivity for remote access and backup.

During operation, multiple data screens display live metrics including current turn count, layer progression, elapsed time, wire guide position, spindle RPM, and pitch, providing complete process visibility and control.

---

• Embedded Linux-based platform.
• "Start-from-turns" function for mid-program recovery.
• Embedded media support (videos, images, and text files) for operator training and work instructions.
• Easy programming at the controller or from a PC.
• USB and Ethernet connectivity for program storage, backup, and remote access.
• Stores hundreds of programs.
• Battery backup to preserve data and ensure no loss of turns count during a power failure.
• Expandable I/O for integration with automation systems and peripheral devices.
• Large, bright color display for optimal visibility.
